Oscillators

  • Oscillators Version 1

    apogeeLAB, has created on explicit request, a series of extremely high performance oscillators of various levels.

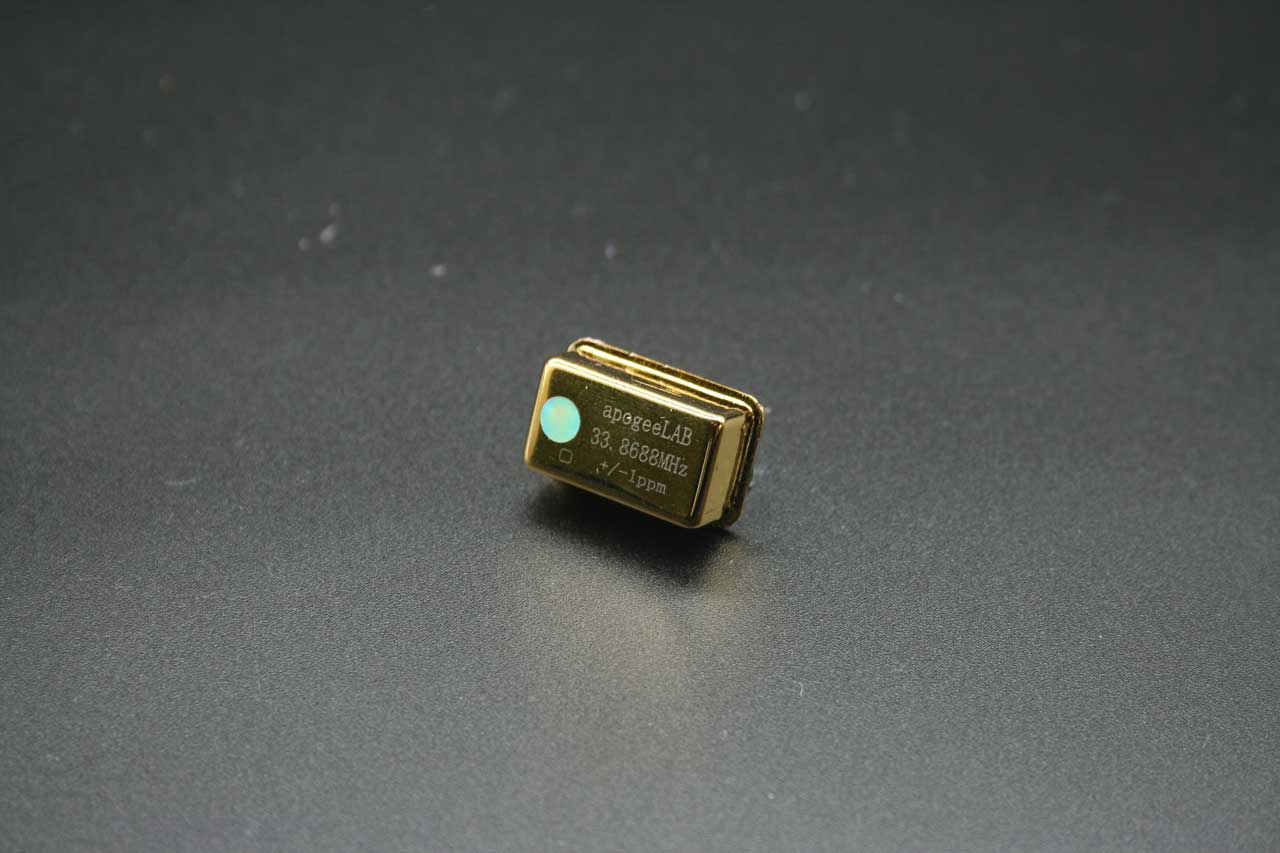

    The type 1 version, foresees the construction and realization of an ACTIVE quartz oscillator, extremely precise, all housed in a DIP14 container, gold coloured. Its characteristics are fantastic, and can be summarized in a few lines:



    • Extremely low jitter
    • Low power consumption, only 30mA
    • Accuracy: 5PPM
    • Maximum accuracy: +/-0.1PPM



    You can consult the datasheet, where other interesting data are listed.





    For any information, do not hesitate to contact us, we will be happy to help you.



    > See the pictures

  • Oscillators Version 2

    apogeeLAB, has created on explicit request, a series of extremely high performance oscillators of various levels.
    The type 2 version foresees the construction and realization of an ACTIVE quartz oscillator, of medium carat, all housed in a DIP14 container. Its characteristics place this type of active oscillator at a medium-low level, with characteristics always of all respect:



    • Low Jitter
    • Low power consumption, only 30mA
    • Accuracy: 10PPM
    • Maximum accuracy: +/- 5PPM



    You can consult the datasheet, where other interesting data are listed.





    For any information, do not hesitate to contact us, we will be happy to help you.



    > See te pictures

  • Oscillators Version 3

    apogeeLAB, has created on explicit request, a series of extremely high performance oscillators of various levels.
    The type 3 version foresees the construction and realization of a passive quartz oscillator, of good carat, all housed in a HC49US (AT49) container. Its characteristics, place this type of passive oscillator at a medium-high level, with characteristics always of all respect:



    • Low Jitter
    • Accuracy: 5PPM
    • Maximum accuracy: +/- 1PPM



    With this type of oscillator, you can directly replace it on your CD-PLAYER, DAC, USB DAC etc. etc., with extreme ease. The sound response, when listening, will be immediate, thanks to the precision of the quartz and its low degree of Jitter.



    You can consult the datasheet, where other interesting data are listed.





    For any information, do not hesitate to contact us, we will be happy to help you.



    > See the pictures

Oscillators Version 1
Oscillators Version 2
Oscillators Version 3
For informations...
do not hesitate to write: we will be happy to answer you clearly and comprehensively
